Description
Utility Relay and Fuse Box: Nilight relay box is designed with 6 slots relay and 6 slots fuse for installing, Meet the basic circuit wiring requirements. Compared to a chaotic wiring environment, the box provides a tidy and waterproof environment, it is well organize, consolidate, and helps you tracking multiple independent circuits easily.
Support Multiple Circuits: The box contains 6 relay slots and 6 fuse slots, which means you can hook up to 6 circuits on the relay box. The relays are 40Amp which includes 5pcs 5PIN relay, and 1PCS 4 PIN relay. The fuse slots on the side includes 6 ATC/ATO blade fuses, they are 5A, 10A, 15A, 20A, 25A, 30A. You can use it on most 12V vehicles.
High Performance: The box is an insulating case with strong tamper-proof performance, with a top and bottom cover for waterproof and dustproof, it has a cable opening hole that is the outlet for all wires, which can be well connected together and better shielded from water splashes, dust, and debris.
Easy Installation: The brackets on both sides of the box allow it to be mounted on any wall inside the cars. This fuse relay box is suitable for installing on any vehicles such as cars, trucks, trailer, campers, marine boats, ATVs, UTVs etc. Make it possible to securely mount this waterproof relay box just about anywhere.
Package Includes:1 x Fuse Relay Block with Top and Bottom Cover, 5 x 5Pin Relays, 1 x 4Pin relay, 12 x Blade Fuses(2x 5A,2x 10A,2x 15A,2x 20A,2x 25A,2x 30A),56x Metallic Fuse and Relay Terminals(30 for 5pin relays and 8 for 4pin relay,18 for blade fuse),2x mounting screws and nuts.
Product Dimensions : 1.18 x 1.18 x 0.79 inches; 1.15 Pounds
Date First Available : November 30, 2022
Manufacturer : Nilight
Best Sellers Rank: #3,894 in Automotive (See Top 100 in Automotive)
Customer Reviews:
Nilight Waterproof Fuse Relay Box
SPECIFICATIONS:
Fuse Block: 6 slots
Relay Block: 6 slots
Applied Voltage: 12V or 24V
Cover Material: Plastic
Base Material: Thermoplastic
Fuse Type: ATC & ATO Standard Fuse

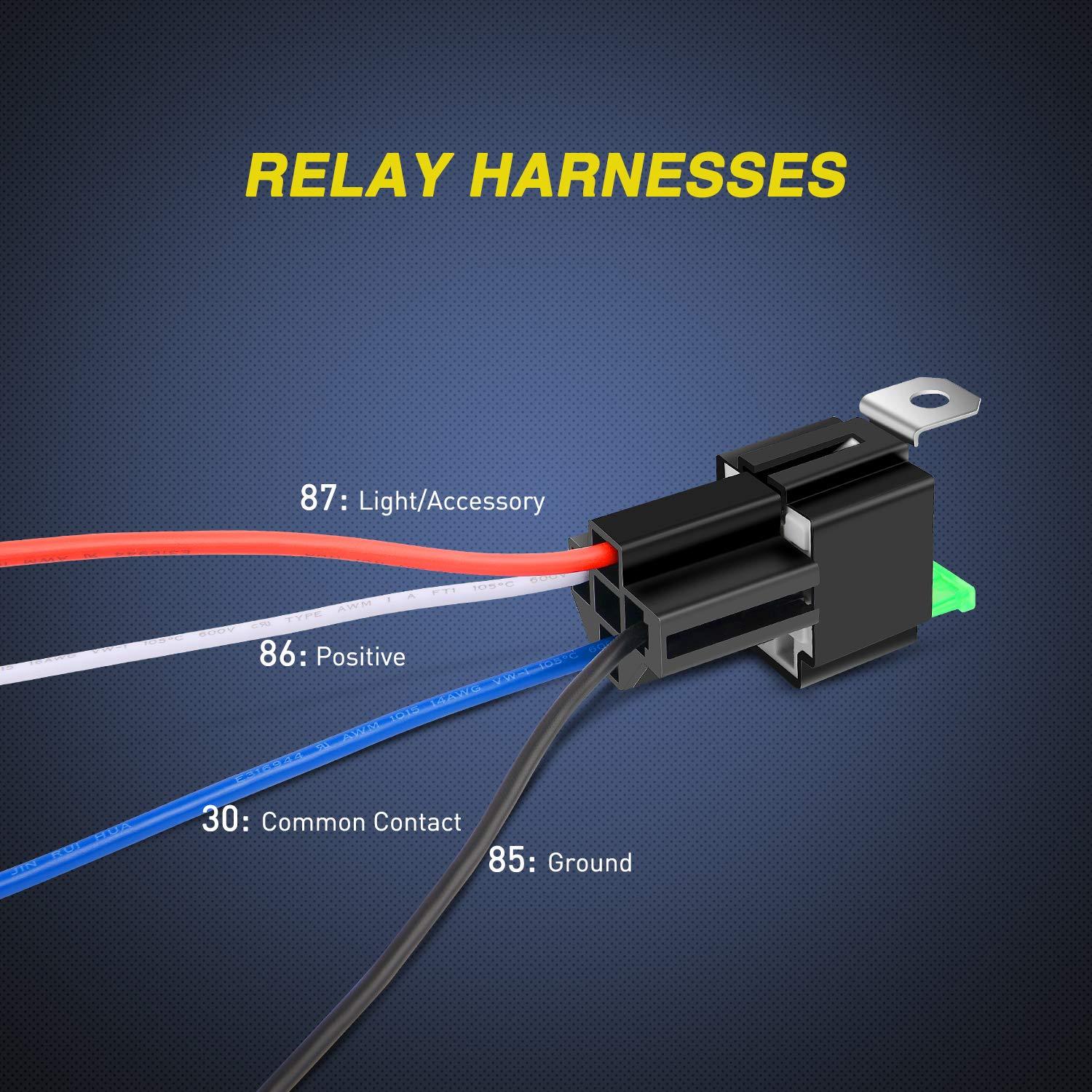

Relay Type: 5pin Relay & 4pin Relay
PACKAGE INCLUDES:
1 x Relay Holder Box with Top and Bottom Cover
5 x 5Pin 24V 40A relays
1 x 4 pin 24V 40A relays
12 x ATO/ATC fuse (5A,10A,15A,20A,25A,30A)
56 x Metallic Fuse and Relay Terminals
2 x mounting screws and nuts.
Note: Please wrap all the conductive pins inside the fuse box with insulation tapes to avoid short circuits.
